Lower Rotating Beam Overhead Crane

  • JINGHE
  • Changyuan City, Xinxiang City, Henan Province, China
  • 15days
  • 500units/month
Jinghe low-headroom rotating beam bridge crane Revolutionary improvement in space utilization: The rotation function reduces the round-trip time of the hoist, shortens the single handling cycle by 30%, and with the fast/slow dual-speed mode, the average daily throughput is increased by 40%. Complex path handling: It can bypass obstacles such as columns and pipes to achieve "S-shaped" trajectory movement. Multi-station coverage: A single device can serve 4 to 6 workstations, replacing multiple fixed cranes. Full life cycle cost optimization and reduced installation cost: No need to reinforce the plant structure, the installation cycle is shortened by 50%. Convenient maintenance: The modular design of the rotating mechanism takes less than 2 hours to replace the bearing, and the annual maintenance cost is reduced by 30%.

Overview

The Lower Rotating Beam Overhead Crane is an innovative lifting equipment specifically designed for space-constrained environments. By integrating low headroom construction with a rotating beam mechanism, it maximizes vertical and horizontal workspace utilization while ensuring efficient material handling. This crane is widely used in industries such as machinery manufacturing, automotive assembly, warehousing, logistics, and metallurgical processing, particularly in facilities with low ceiling heights requiring flexible operations.


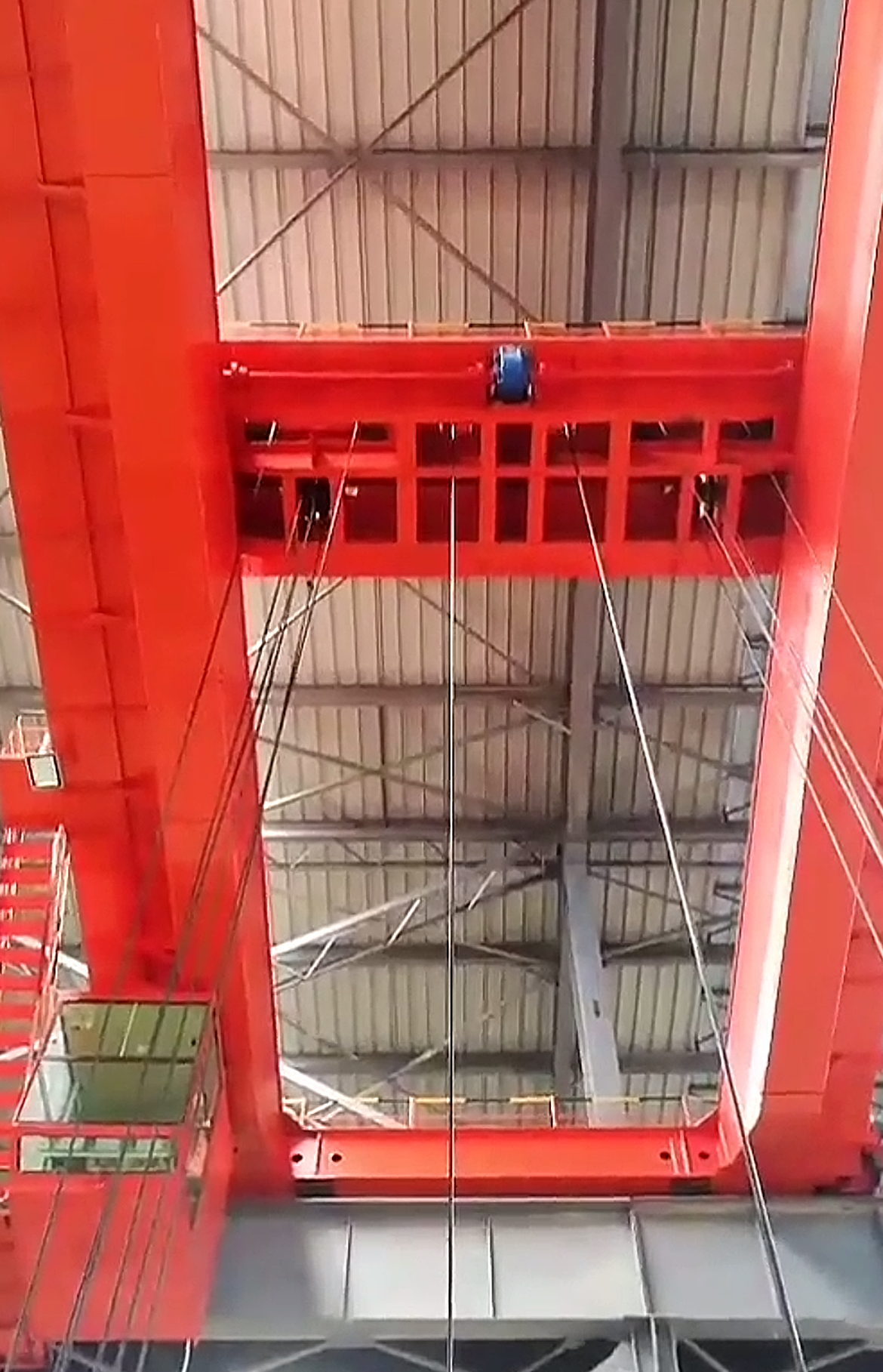

manual overhead bridge crane


Core Structure and Technical Features


1. Low Headroom Design

  • Space Optimization: Reduces main beam height by 30%–50% compared to traditional overhead cranes, eliminating the need for additional vertical clearance. Ideal for facilities with ceiling heights below 5 meters.

  • High-Strength Main Beam: Utilizes box-type beams or composite H-shaped steel beams, optimized via finite element analysis (FEA) to ensure load-bearing capacity and deformation resistance.

  • Compact Hoist System: Equipped with customized low-headroom wire rope hoists or chain hoists, achieving 10%–15% greater lifting height without compromising performance.

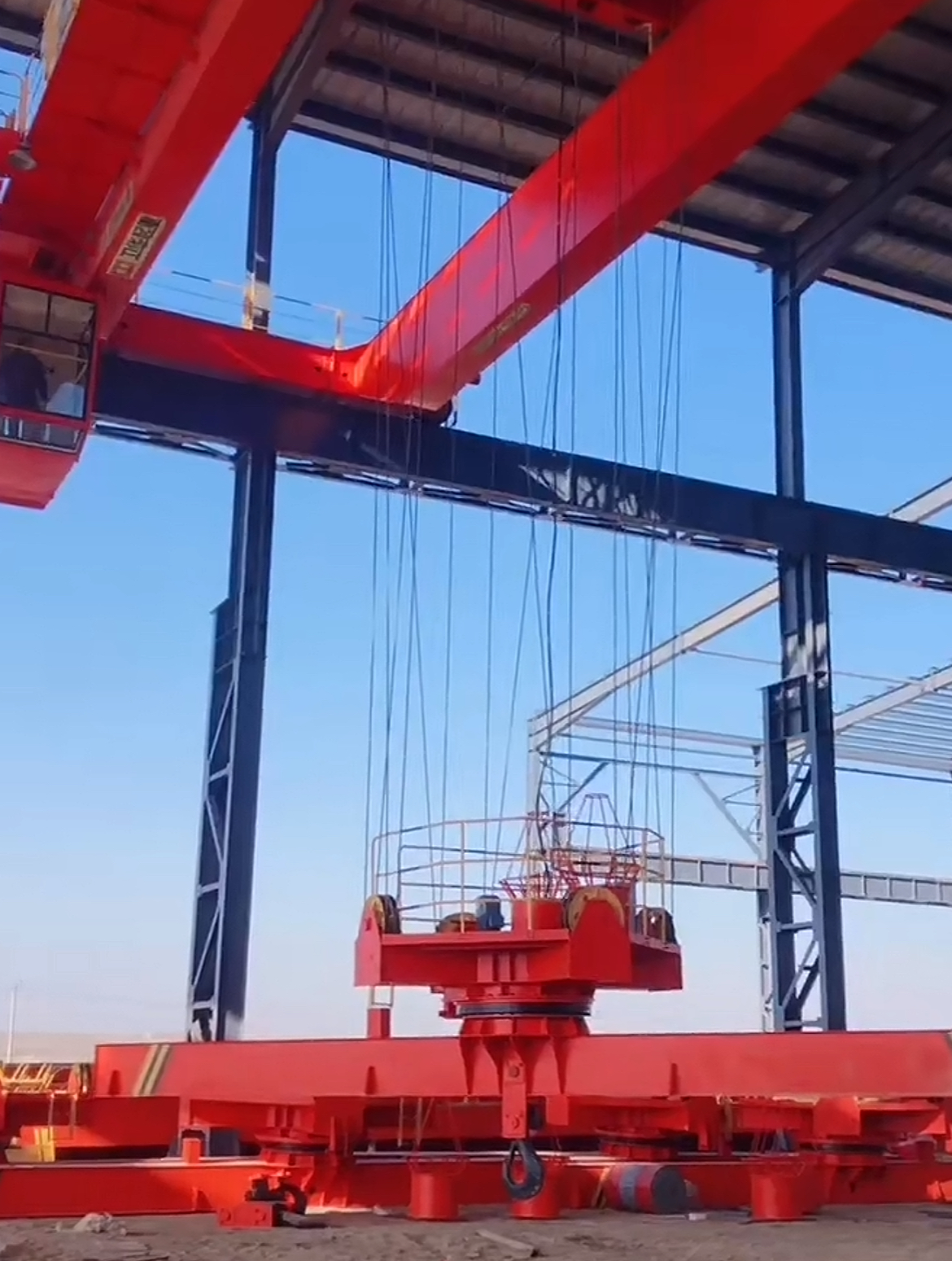

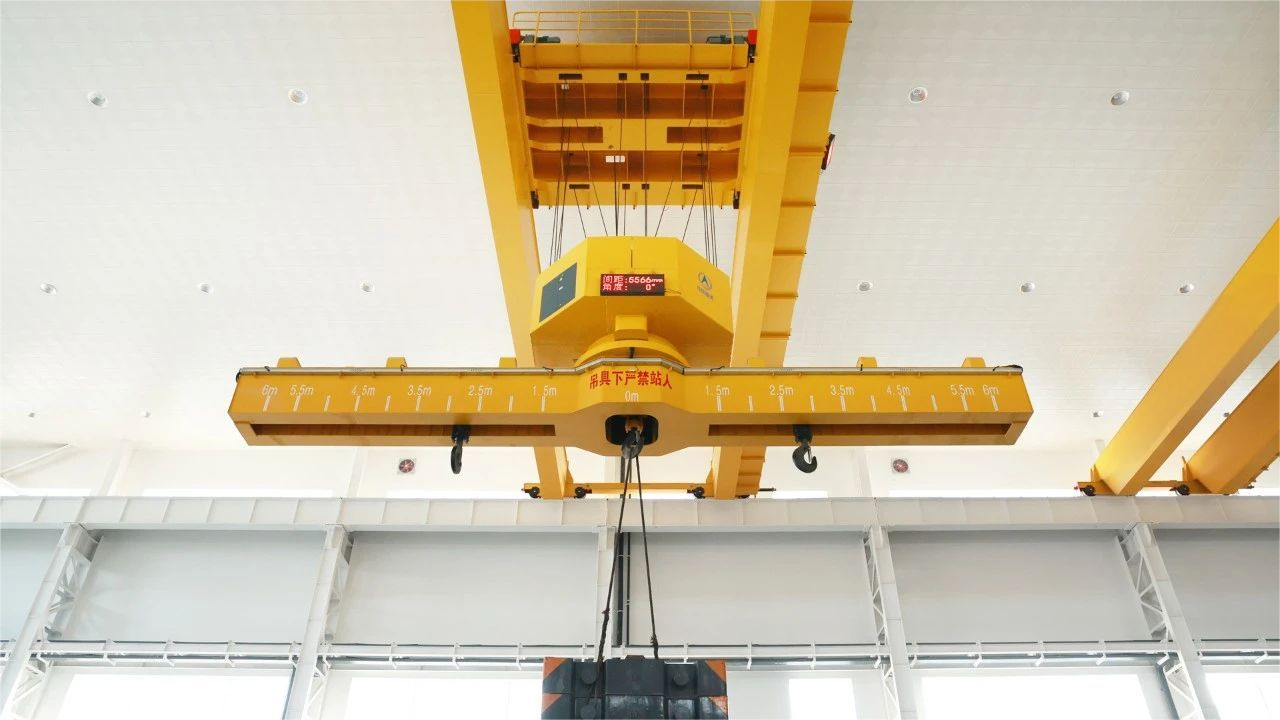

2. Rotating Beam System

  • Horizontal Rotation: The beam end features a rotating mechanism (typically ±180° rotation), extending coverage to previously inaccessible "blind zones" by 20%–40%.

  • Precision Positioning: Employs frequency-controlled motors or servo control technology, achieving rotational positioning accuracy of ±1° for tasks like precision assembly and mold alignment.

  • Dual Operational Modes: Supports manual rotation (emergency mode) and electric rotation (standard mode) to ensure operational continuity during contingencies.

3. Modular Drive System

  • Three-in-One Drive Unit: Integrates gearbox, motor, and brake into a compact end-carriage module, reducing noise to <65 dB and energy consumption by 15%.

  • Dual-Speed/Frequency Control: Adjustable trolley and bridge speeds (e.g., 20/5 m/min) enable smooth heavy-load starts and rapid light-load transfers.

4. Intelligent Control System

  • Wireless Remote Operation: Includes a 2.4GHz anti-interference remote controller with a 100-meter range, supporting multi-crane coordination.

  • PLC Integration: Optional PLC + touchscreen interface for speed adjustment, fault diagnostics, data logging, and MES system integration.

  • Safety Mechanisms: Incorporates overload protection, limit switches, emergency braking, voltage monitoring, and more, compliant with ISO 12482-1 standards.


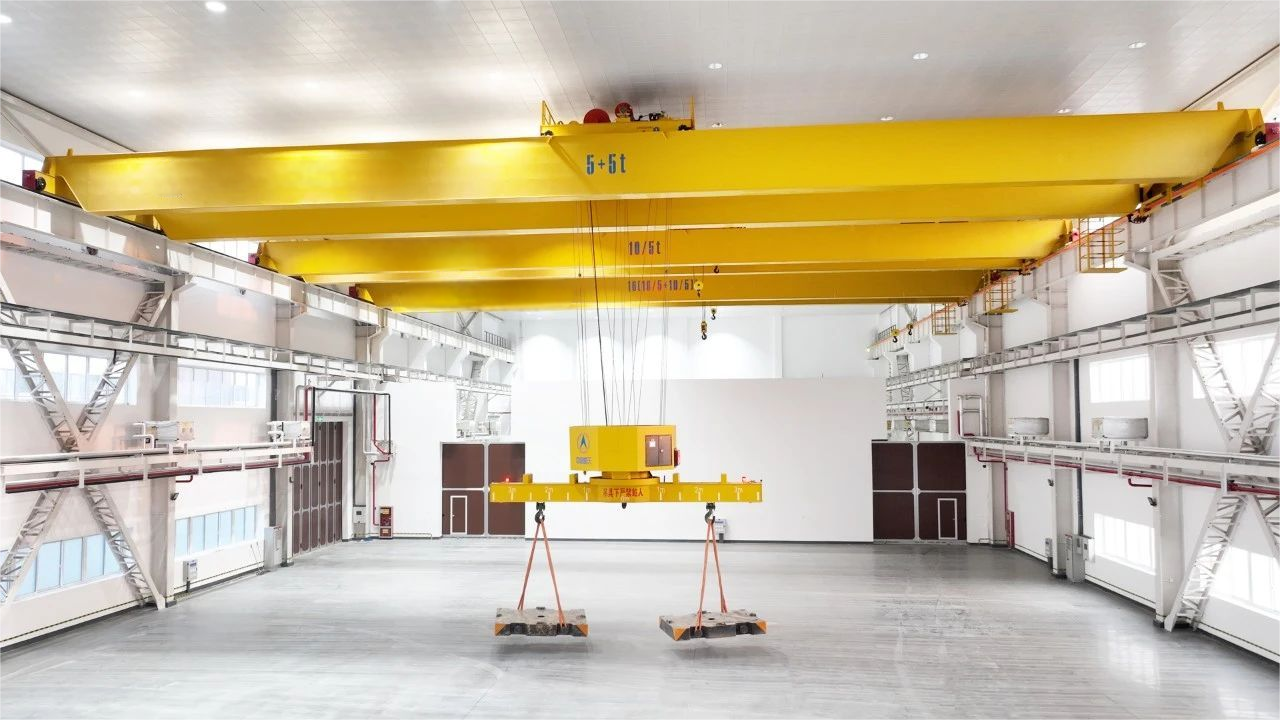

20 ton overhead bridge crane


Key Performance Parameters



ParameterSpecifications
Rated Load Capacity1–32 tons (customizable up to 50 tons)
Span5–35 meters (supports non-standard spans)
Lifting Height3–30 meters (adjustable based on headroom)
Rotation Angle0–360° (continuous or segmented positioning)
Duty ClassA3–A6 (compliant with FEM/ISO standards)
Power Supply380V/50Hz or customer-specific voltages



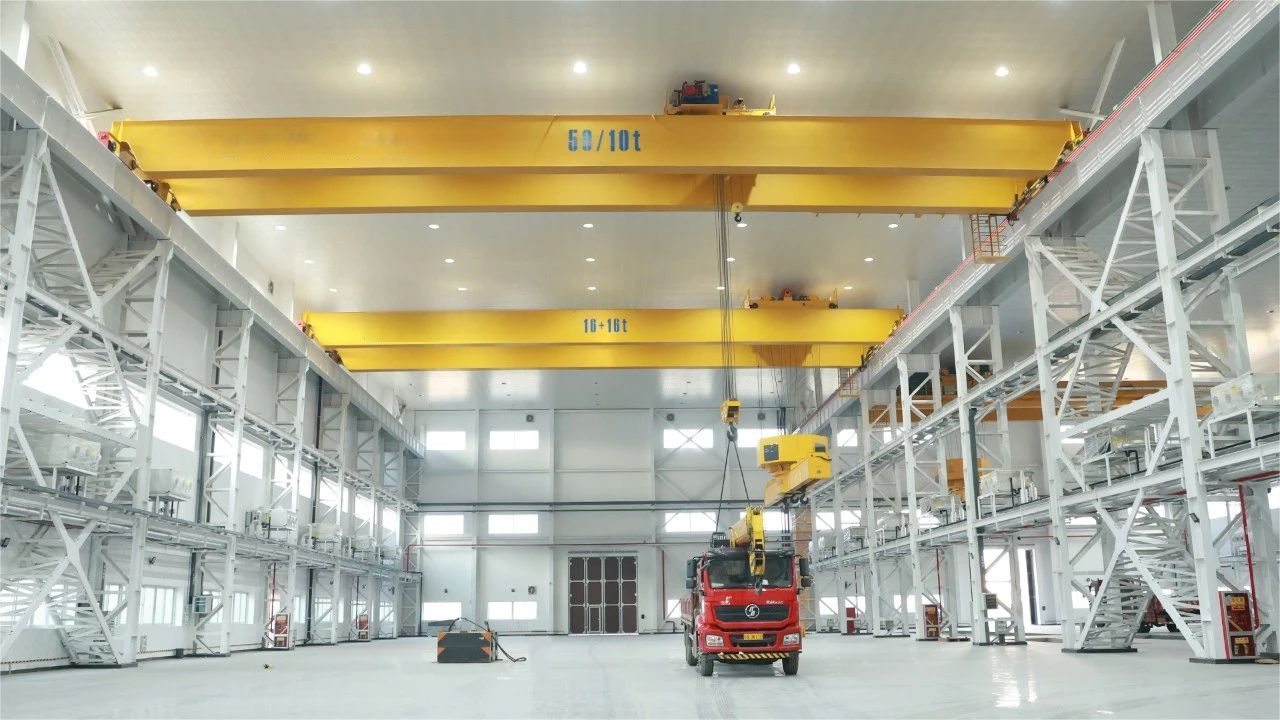

crane overhead bridge



Typical Applications

  • Automotive Manufacturing

1. Body-in-white welding: Precise positioning for multi-angle fixture alignment.

2. Engine installation: Low headroom design accommodates height-restricted assembly lines.

  • Smart Warehousing

Narrow-aisle racking systems: Maneuvers through tight spaces for high-level storage retrieval.

  • Aerospace

Composite material handling: Anti-static design + millimeter-level positioning for delicate components.

  • New Energy Sector

Battery module transport: Explosion-proof configuration + stepless speed control for cleanroom safety.


manual overhead bridge crane


Safety and Reliability

  • Triple Braking System: Electromagnetic brake + mechanical lock + hydraulic damping to prevent slippage.

  • Structural Longevity: Main beams undergo 1 million fatigue cycles, with a design life of 25 years (ISO 4301 compliant).

  • Environmental Adaptability: Optional high-temperature (-25°C to +60°C), corrosion-resistant (hot-dip galvanized or coated), or explosion-proof (Ex d IIB T4) variants.


20 ton overhead bridge crane
