Inside Tesla's Gigafactory: How Overhead Cranes Are Revolutionizing EV Production

2025-05-06

I. Tesla's Gigafactory: The "Future Lab" of Global Manufacturing

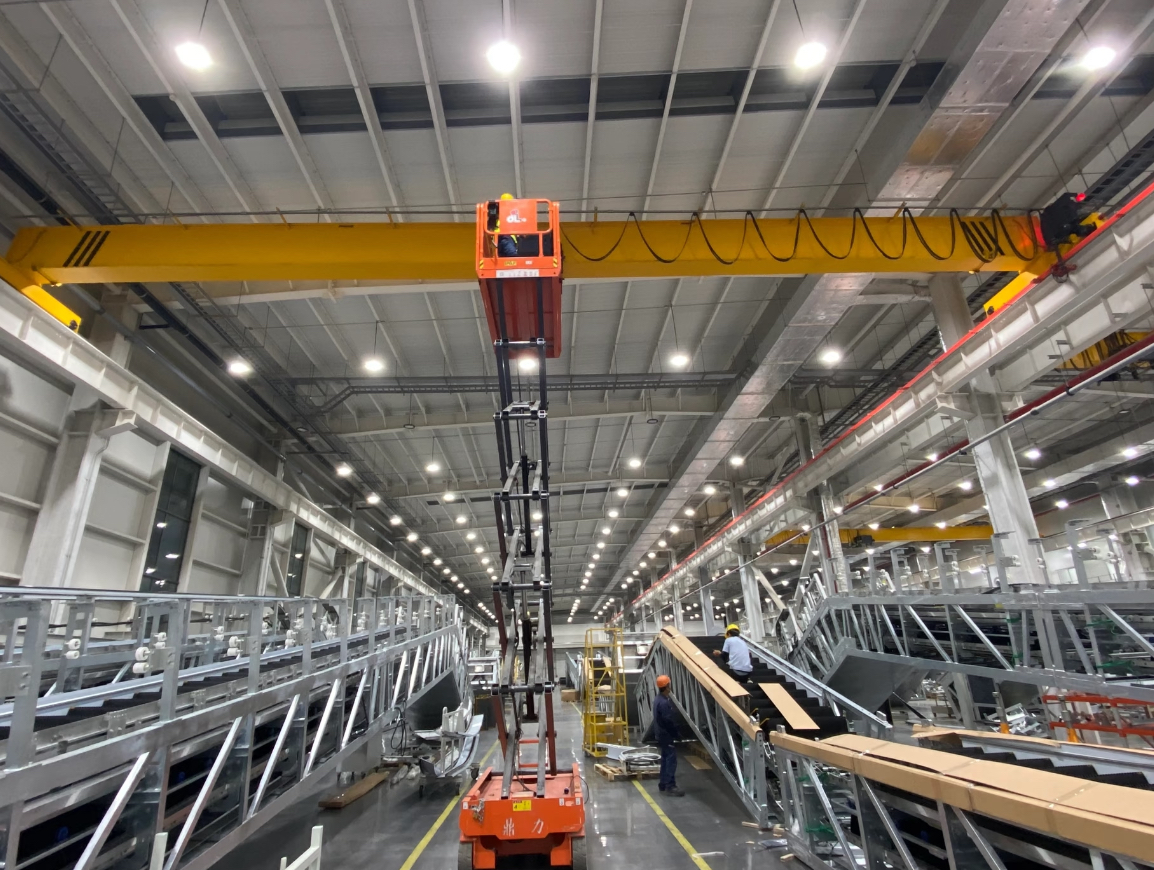

girder overhead crane

1.1 Scale and Efficiency Challenges

Data Comparison: Tesla’s Berlin Gigafactory spans 300 hectares (equivalent to 420 soccer fields) and produces 90 Model Y bodies per hour—three times faster than traditional auto plants.

Core Challenge: How to achieve precise, rapid material handling in vast spaces? Conventional forklifts and conveyors proved inadequate.

1.2 Strategic Role of Overhead Cranes

Load Requirements: EV battery packs exceed 500kg, while motors demand positioning accuracy within 2mm.

Tesla’s Solution: 32 intelligent double-girder overhead cranes form the factory’s logistical backbone, spanning from stamping shops to final assembly.

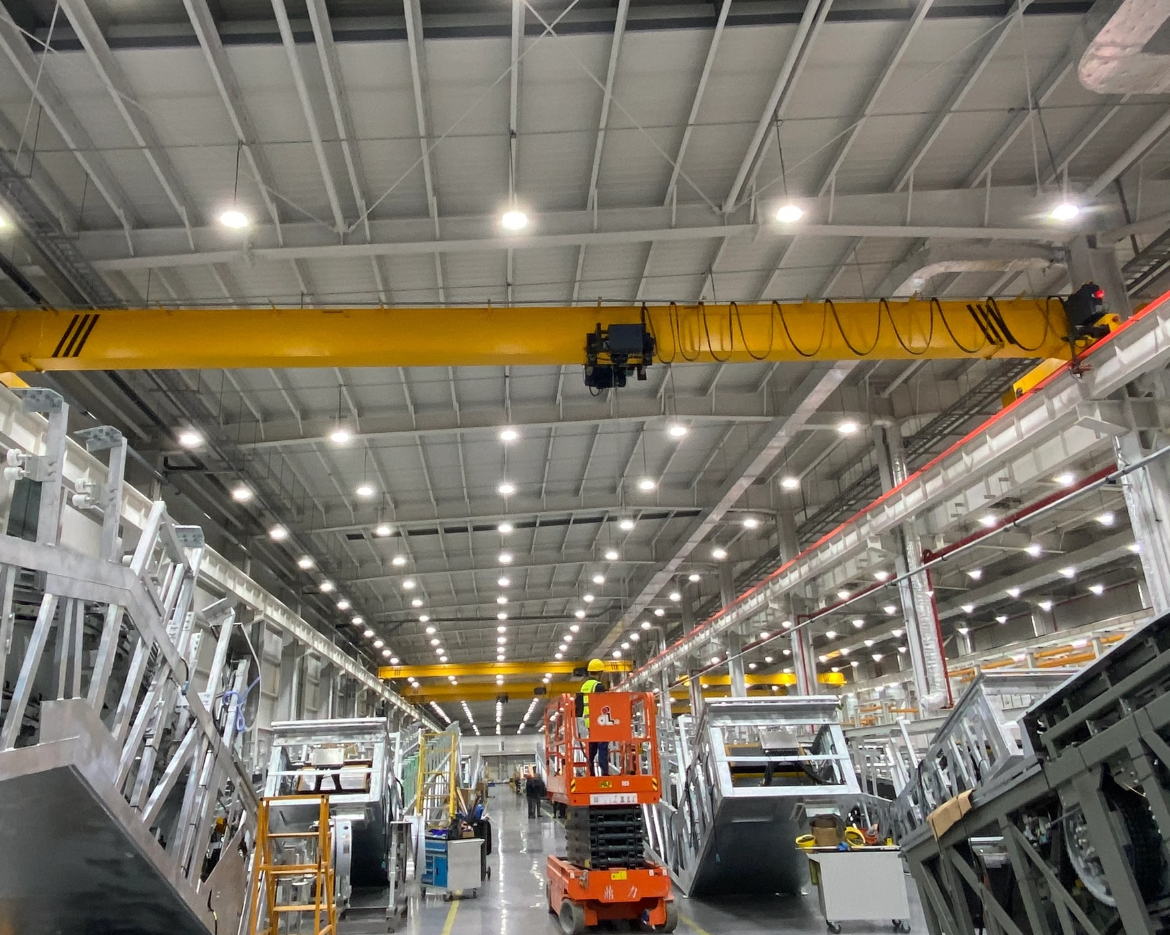

indoor overhead crane

II. Decoding 5 Breakthrough Technologies in Tesla’s Custom Overhead Cranes

2.1 AI-Powered Dynamic Path Planning

Technology: LiDAR + vision sensors scan obstacles in real-time, with AI updating optimal paths every 0.5 seconds.

Efficiency Gain: 42% faster material transfer vs. manual operation (Tesla 2022 Internal Report).


2.2 Magnetic Levitation Drive System

Innovation:

Linear motors replace gears, reducing friction by 90%

Speed reaches 120m/min with start/stop shock limited to 0.1G

Industry Impact: Patented technology (US2023178932A1) now adopted in aerospace sectors.

2.3 Digital Twin Monitoring Platform

Operation:

Cloud-based 1:1 virtual models for each crane

Real-time tracking of 15 parameters (wire rope tension, motor temperature, etc.)

Predictive Maintenance: Reduced downtime from industry-average 3.7% to 0.8%.

buy overhead crane

2.4 Modular Quick-Change System

Design:

Standardized tool interfaces enable 90-second夹具 swaps

Handles 23 material types (battery modules, chassis frames, etc.)

Flexible Production: Cuts model changeover time to 18 minutes.

2.5 Wireless Energy Management

Sustainability:

Regenerative braking recovers 30% of energy

Syncs with solar grid for carbon-neutral operations


III. 4 Industry-Wide Shifts Driven by Tesla’s Crane Innovations

3.1 Reengineering Production Rhythm

  • Data Comparison:

    MetricTraditional PlantTesla Gigafactory
    Crane Operations/Car5822
    Average Move Distance127m64m

3.2 Structural Reduction in Labor Costs

Automation:

15 fewer crane operators per shift

AR remote control enables 1 technician to monitor 6 cranes

3.3 Vertical Space Optimization

3D Logistics:

40% storage area reduction via aerial material flow

Synchronized "sky conveyor" with ground assembly

3.4 Quality Control Paradigm Shift

Error-Proofing:

Vision systems verify part IDs

Force sensors ensure ±0.5mm assembly tolerance

IV. Global Manufacturing Chain Reactions

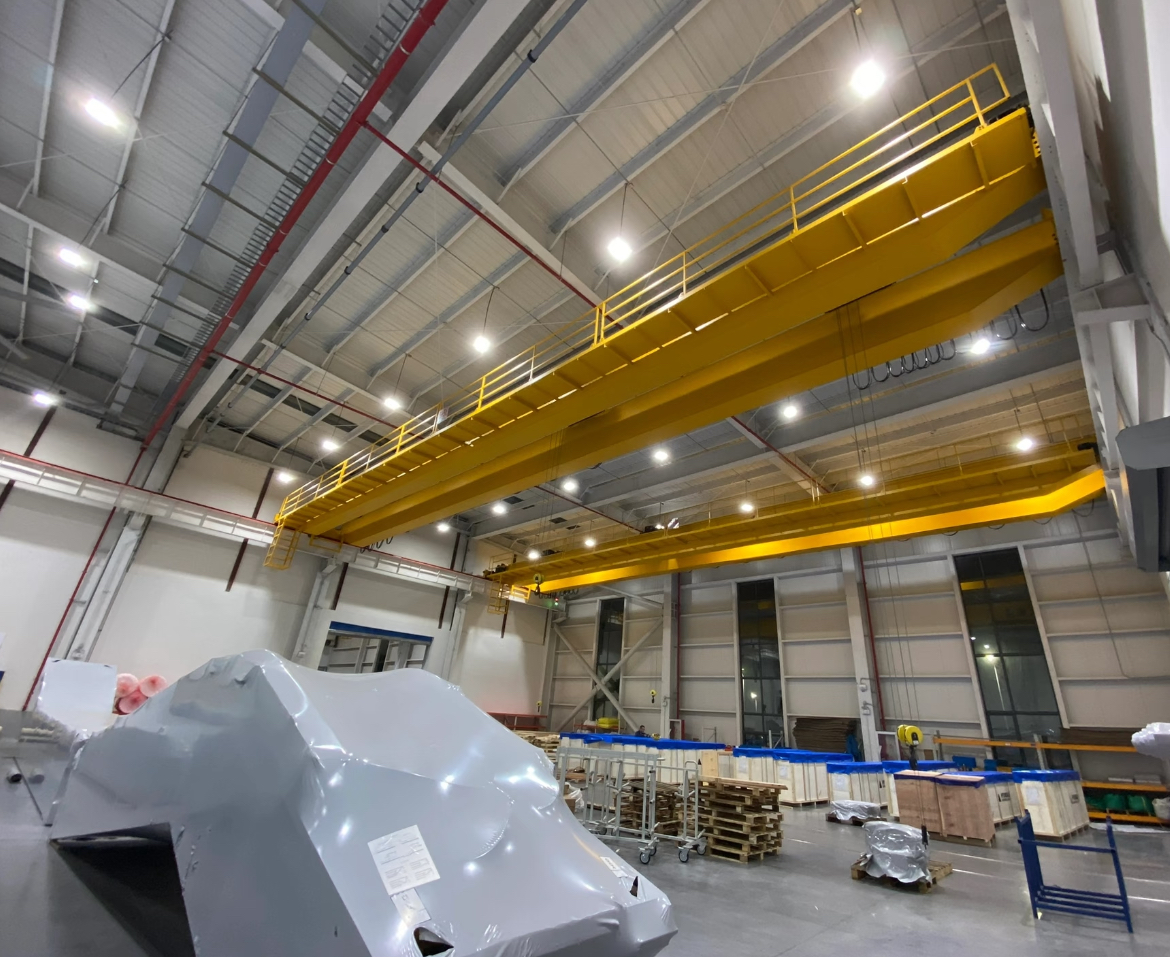

girder overhead crane

4.1 Competitor Responses

Volkswagen: €200M crane system upgrade at Wolfsburg plant

BYD: Collaborating with Zhenhua Heavy Industries on "Maglev+5G" cranes

4.2 Supply Chain Transformations

Specialty Steel Demand: Q690D high-strength crane rail steel purchases up 35% YoY

Sensor Market Shift: SICK and KEYENCE dominate 80% of high-end sensor supply
