Comparative Analysis of Overhead Bridge Cranes vs. Jib Cranes: Application Scenarios and Selection Criteria

1. Introduction

Industrial lifting equipment plays a pivotal role in modern manufacturing and logistics, with overhead bridge cranes and jib cranes collectively accounting for 68% of global material handling solutions (MHI 2023 Report). While both serve vertical lifting needs, their structural configurations and kinematic capabilities dictate fundamentally different operational paradigms.

2. Structural & Operational Mechanics

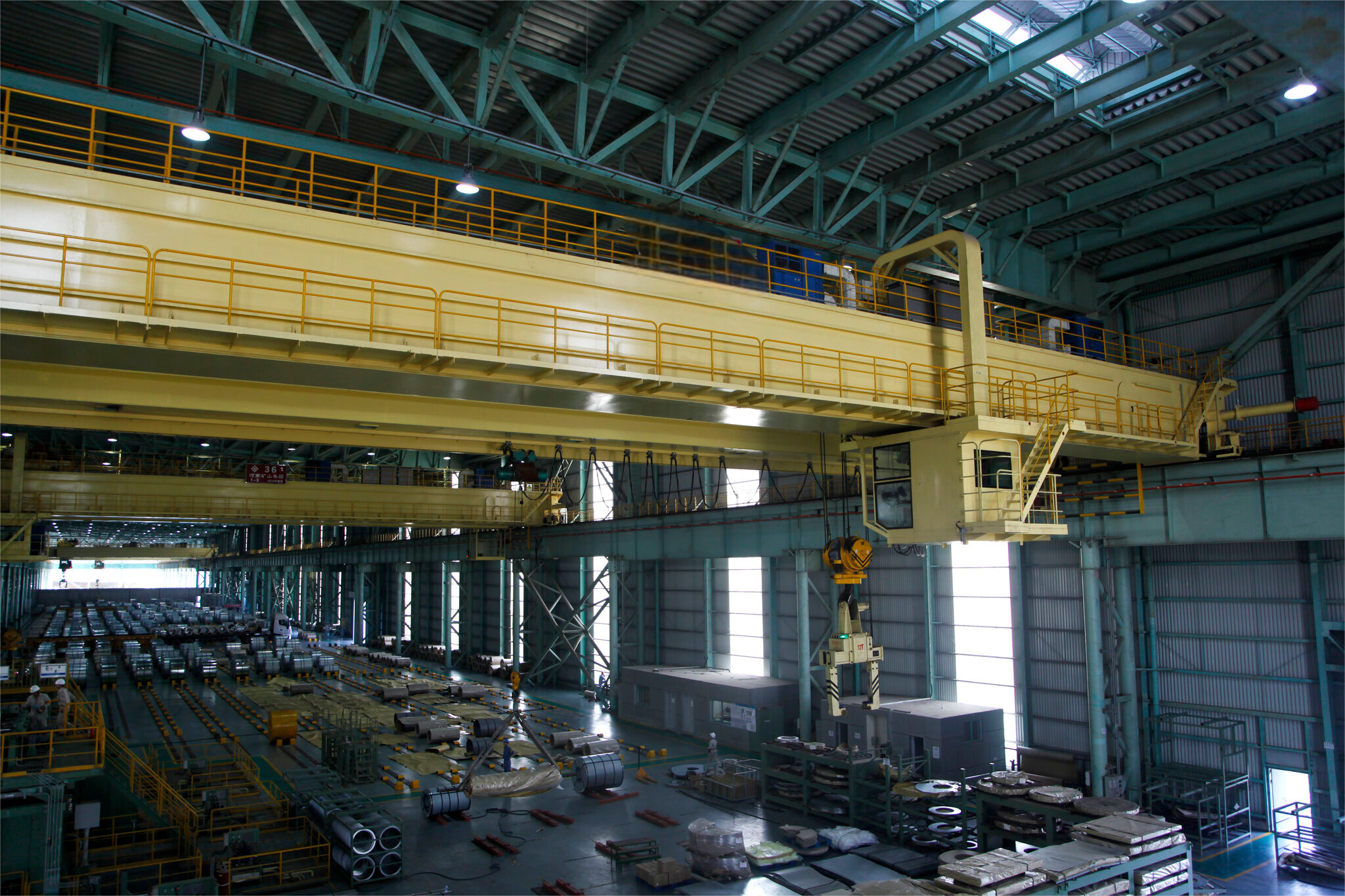

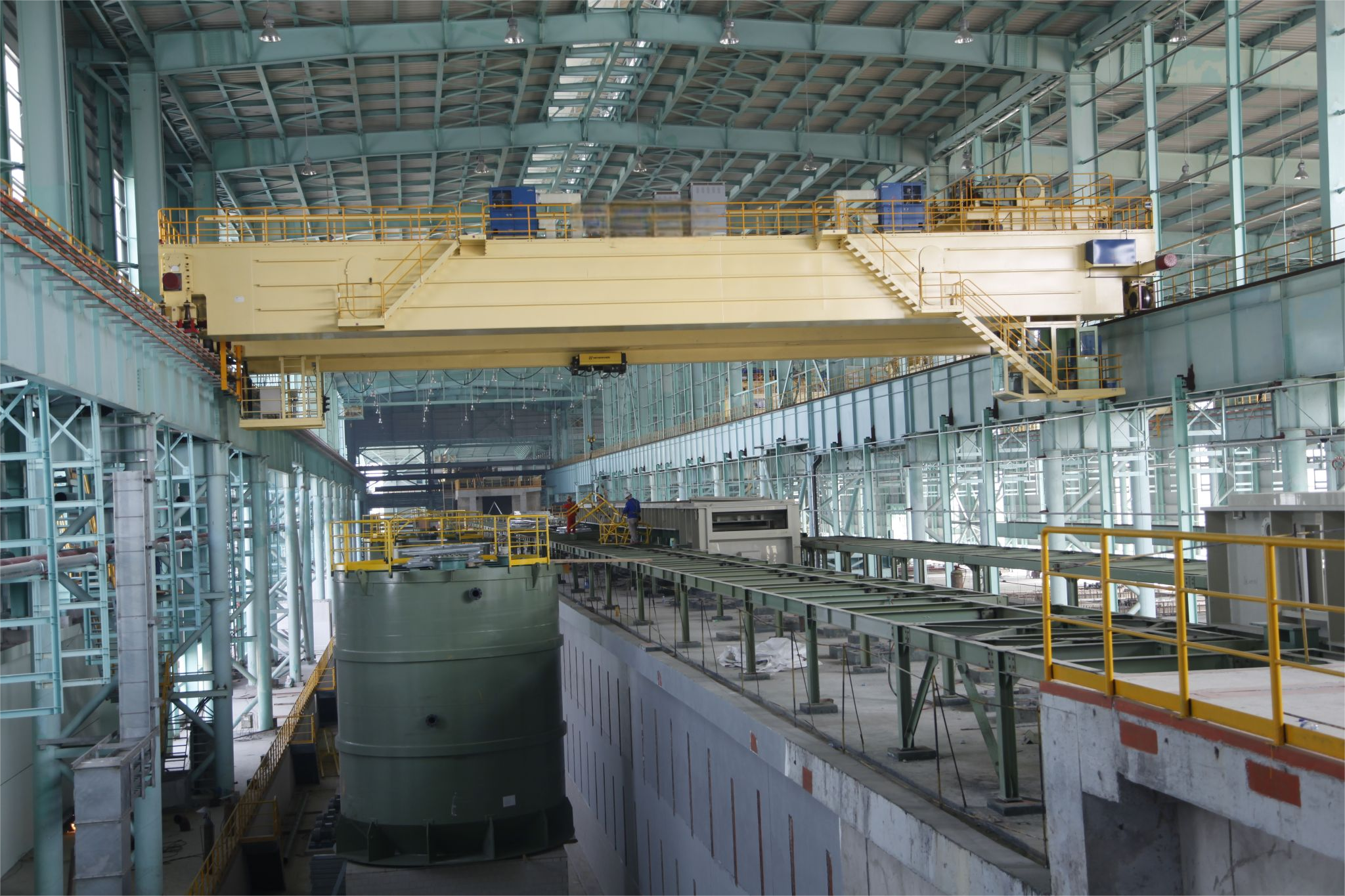

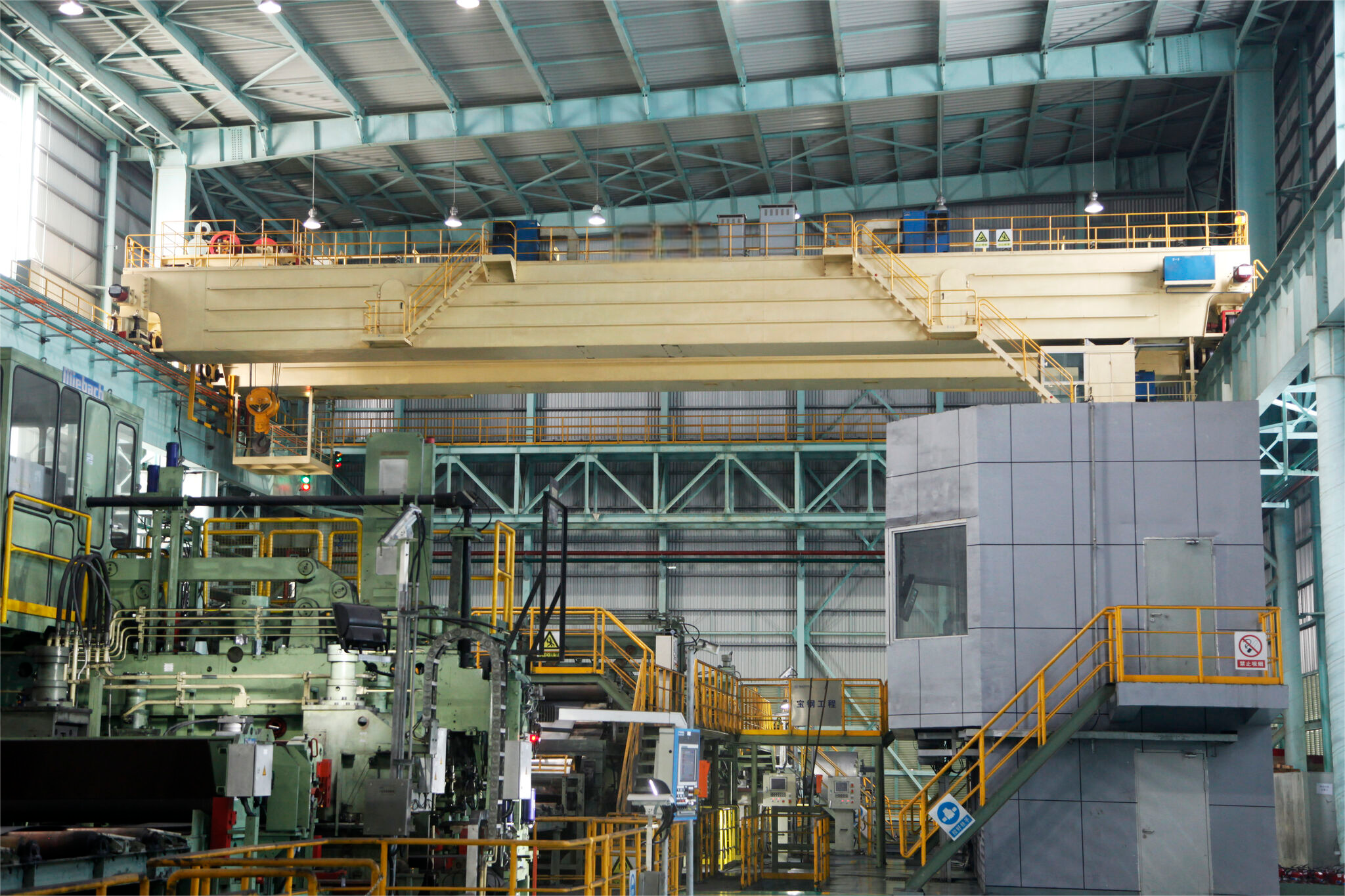

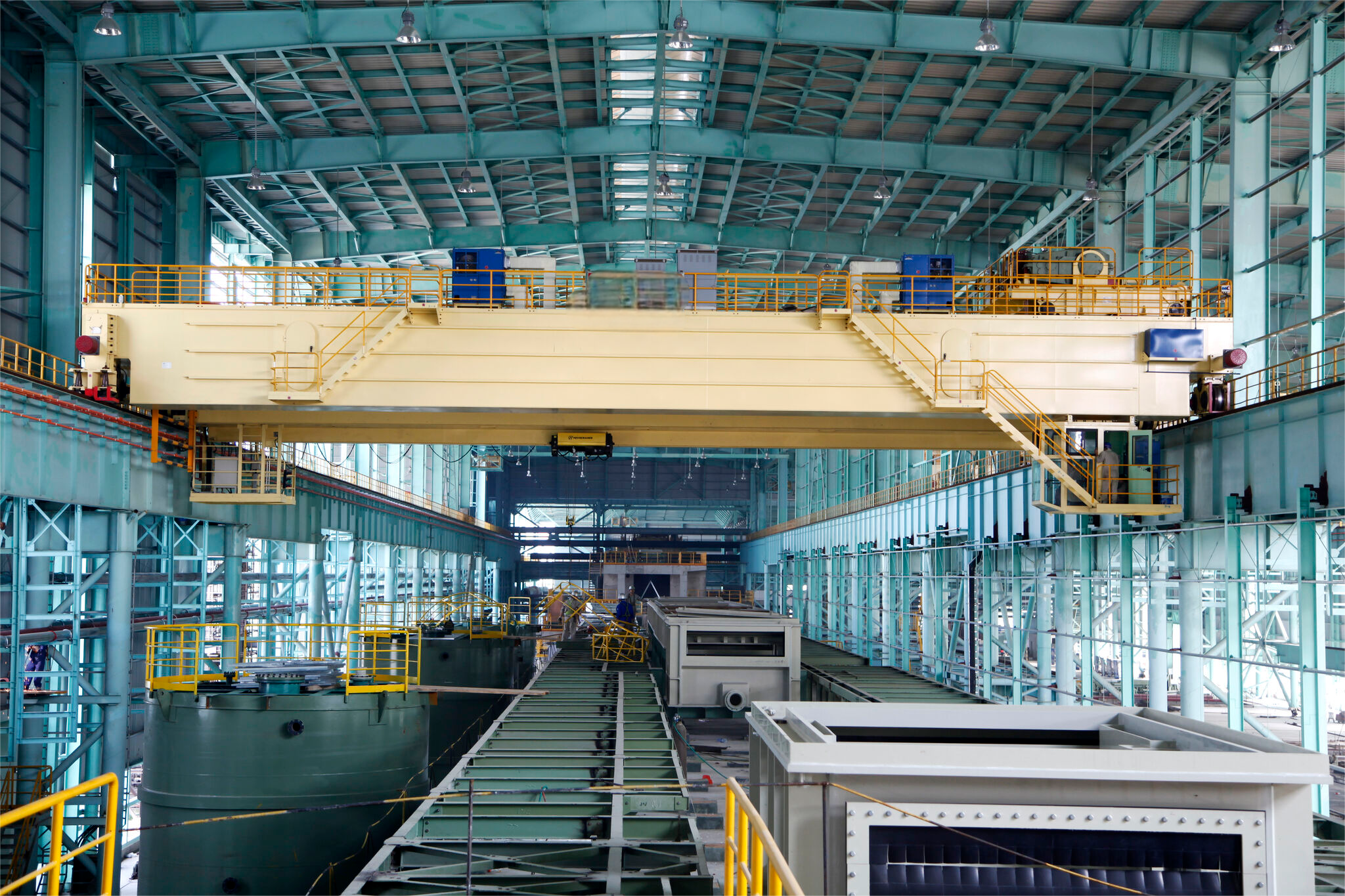

2.1 Overhead Bridge Crane System

Configuration:

• Double-girder design (50-500t capacity)

• Single-girder variant (1-20t capacity)

• 3-axis motion: Cross travel (X), long travel (Y), hoisting (Z)

• Span range: 10-50m (industry standard: 22.5m EN 15011 compliance)

Performance Metrics:

• Positioning accuracy: ±5mm (servo-controlled systems)

• Max speed: 20-60 m/min (variable frequency drive dependent)

• Duty classification: FEM 1Am to 3m (continuous operation capability)

2.2 Jib Crane System

Configuration:

• Freestanding pillar (0.5-20t capacity)

• Wall-mounted variant (≤5t capacity)

• Articulated motion: 180°-360° rotation + vertical lift

• Reach: 3-15m (ISO 4301-1 compliant designs)

Performance Metrics:

• Angular positioning: ±1° (gear-driven rotation)

• Max slew speed: 0.5-2 rpm

• Duty cycle: 15-30% (intermittent operation optimized)

•


2.3 Kinematic Comparison Matrix

3. Industry-Specific Applications

3.1 Manufacturing Sector

Automotive Assembly (Volkswagen Wolfsburg Case):

• Bridge cranes: Handle 18t car body transfers across 42m span assembly lines

• Jib cranes: Position 800kg engines with ±3mm repeatability in subassembly cells

Heavy Machinery (Siemens Gas Turbine Plant):

• 400t double-girder cranes: Lift 18m turbine rotors with laser-guided alignment

• 10t jib cranes: Service maintenance bays with 360° access around equipment

3.2 Logistics Operations

High-Bay Warehousing (Amazon Robotics FC):

• Bridge cranes: Interface with AS/RS for 32m-high pallet storage (120 cycles/hr)

• Jib systems: Expedite cross-docking with 6m reach covering 8 truck bays

Port Operations (Rotterdam Terminal):

• Container gantry cranes: 65t lifts at 45m outreach

• Grab-type jib cranes: 800tph bulk material handling in confined docks

3.3 Specialized Environments

Clean Rooms (TSMC Semiconductor Fab):

• ISO Class 3 bridge cranes: Handle 5t crystal pullers with <10 particles/ft³

• Electropolished jib cranes: Maintain wafer handling in lithography areas

Hazardous Zones (Chevron Refinery):

• ATEX-certified bridge cranes: Zone 1 explosive atmosphere operations

• Remote-operated jib cranes: 15m safe distance for acid tank maintenance

•


4. Total Cost of Ownership Analysis

4.1 Capital Expenditure Breakdown

4.2 Operational Economics

• Energy Consumption:

• Bridge: 0.8 kWh/ton·m (regenerative drives reduce 25%)

• Jib: 0.35 kWh/ton·m

• Labor Costs:

• Bridge: Certified operator ($45/hr)

• Jib: Semi-skilled worker ($28/hr)

• Maintenance:

• Bridge: $12k-$75k/year (wire rope replacement cycle: 8-10 years)

• Jib: $2k-$15k/year (slewing bearing life: 15,000 hours)

4.3 ROI Comparison

5. Intelligent Selection Framework

5.1 Decision Matrix

Primary Selection Drivers:

1. Load Capacity: ≥20t → Bridge crane

2. Coverage Area: >200m² → Bridge crane

3. Obstacle Density: High → Jib crane

4. Motion Precision: <±5mm → Bridge crane

5. Layout Flexibility: Required → Jib crane

Hybrid Solutions:

• Bridge-Jib combos in aerospace plants (e.g., Boeing Everett Factory)

• Mobile jib cranes with 8hr battery autonomy for yard management

5.2 Emerging Technologies

• Digital Twin Integration:

• Bridge cranes: Predictive maintenance using motor current signature analysis

• Jib cranes: AR-assisted load path visualization

• Advanced Materials:

• CFRP bridge girders: 40% weight reduction

• High-strength aluminum jibs: 12m reach at 50% less inertia
