Environmental adaptability of bridge cranes: How to ensure efficient and safe operation under extreme conditions

2025-02-25

Environmental adaptability of bridge cranes: How to ensure efficient and safe operation under extreme conditions

In heavy industrial scenarios such as steel smelting, port logistics, and chemical production, bridge cranes are not only the core equipment for material handling, but also the "lifeline" of production continuity. According to statistics, the loss of downtime caused by insufficient environmental adaptability of equipment accounts for 12%-18% of the annual operating costs of industrial enterprises. As a leader in China's intelligent lifting equipment, Jinghe Crane has created a full-scenario bridge crane solution through 20 years of technological accumulation. It can still maintain 99.2% of operating stability under extreme conditions such as -40℃ extreme cold, 55℃ high temperature, and strong corrosion. This article will deeply analyze the environmental adaptation technology of bridge cranes and reveal how Jinghe solves industry pain points through innovation.

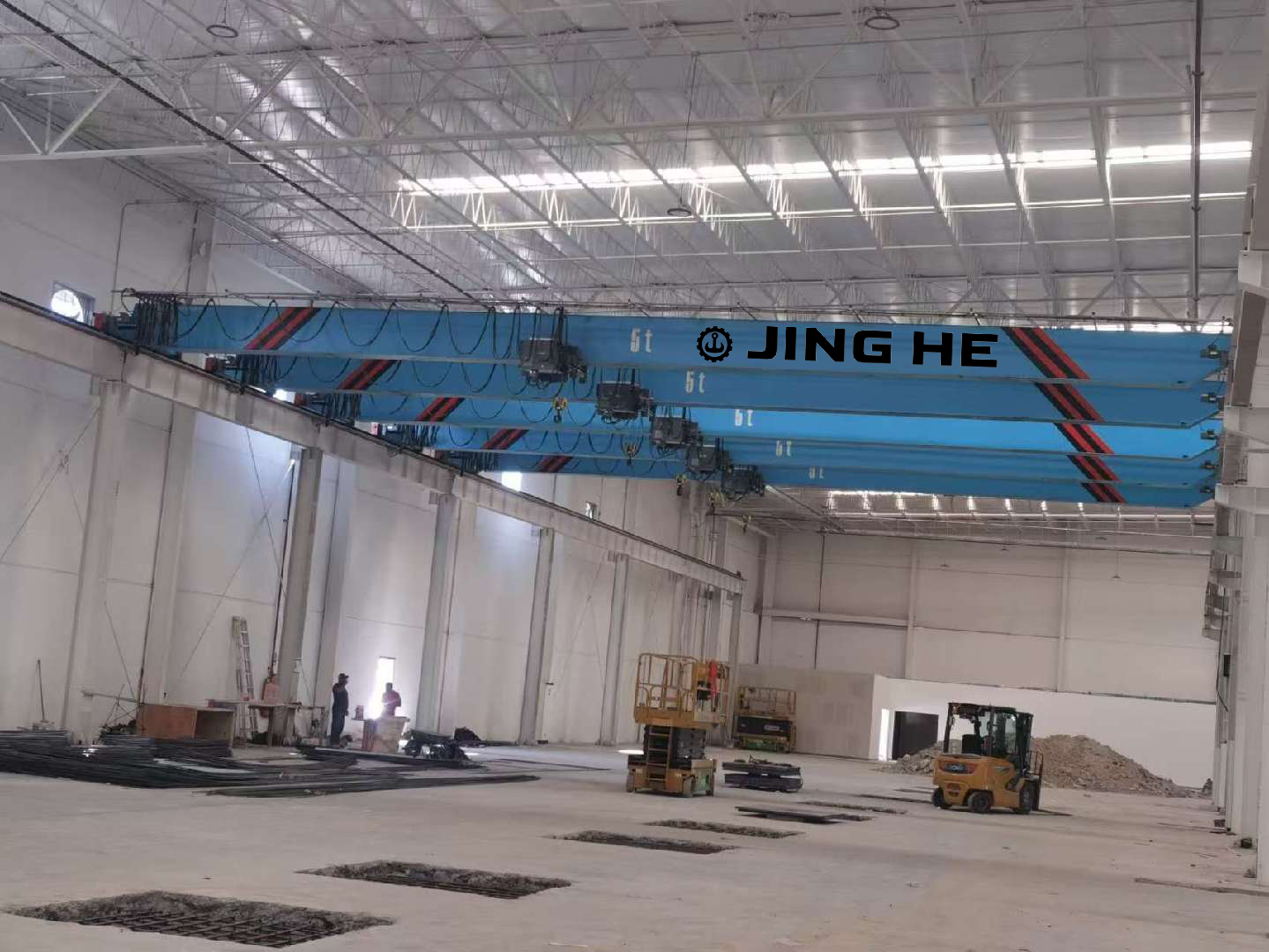

overhead bridge crane

1. Challenges and countermeasures of bridge cranes in extreme temperature environments

1.1 High temperature operation scenarios (such as steel smelting workshops)

Typical challenges:

When the ambient temperature is ≥50℃ for a long time, the risk of motor overheating increases by 300%

The thermal expansion of metal structures causes track deviation error>15mm

Jinghe solution:

✅ High temperature resistant motor group: using H-class insulation material, continuous working temperature ≤180℃

✅ Thermal deformation compensation system: laser real-time monitoring of main beam deformation, automatic correction of track positioning

✅ Case study: After the deployment of Jinghe high temperature resistant bridge crane in the continuous casting workshop of a steel plant, the failure rate dropped from 2.3 times/month to 0.2 times/month

1.2 Extreme cold operation scenarios (such as open-air warehouses in the north)

Typical challenges:

Gearbox grease solidifies at low temperature of -30℃, and the startup failure rate ↑45%

Steel brittleness increases, and the risk of structural parts fracture ↑60%

Jinghe solution:

✅ Low temperature lubrication system: synthetic lubricant that remains fluid at -50℃

✅ Material upgrade: The main beam adopts Q345B low-temperature impact toughness steel (-40℃ Akv≥34J)

✅ Preheating start module: Remote APP preheats key components 30 minutes in advance

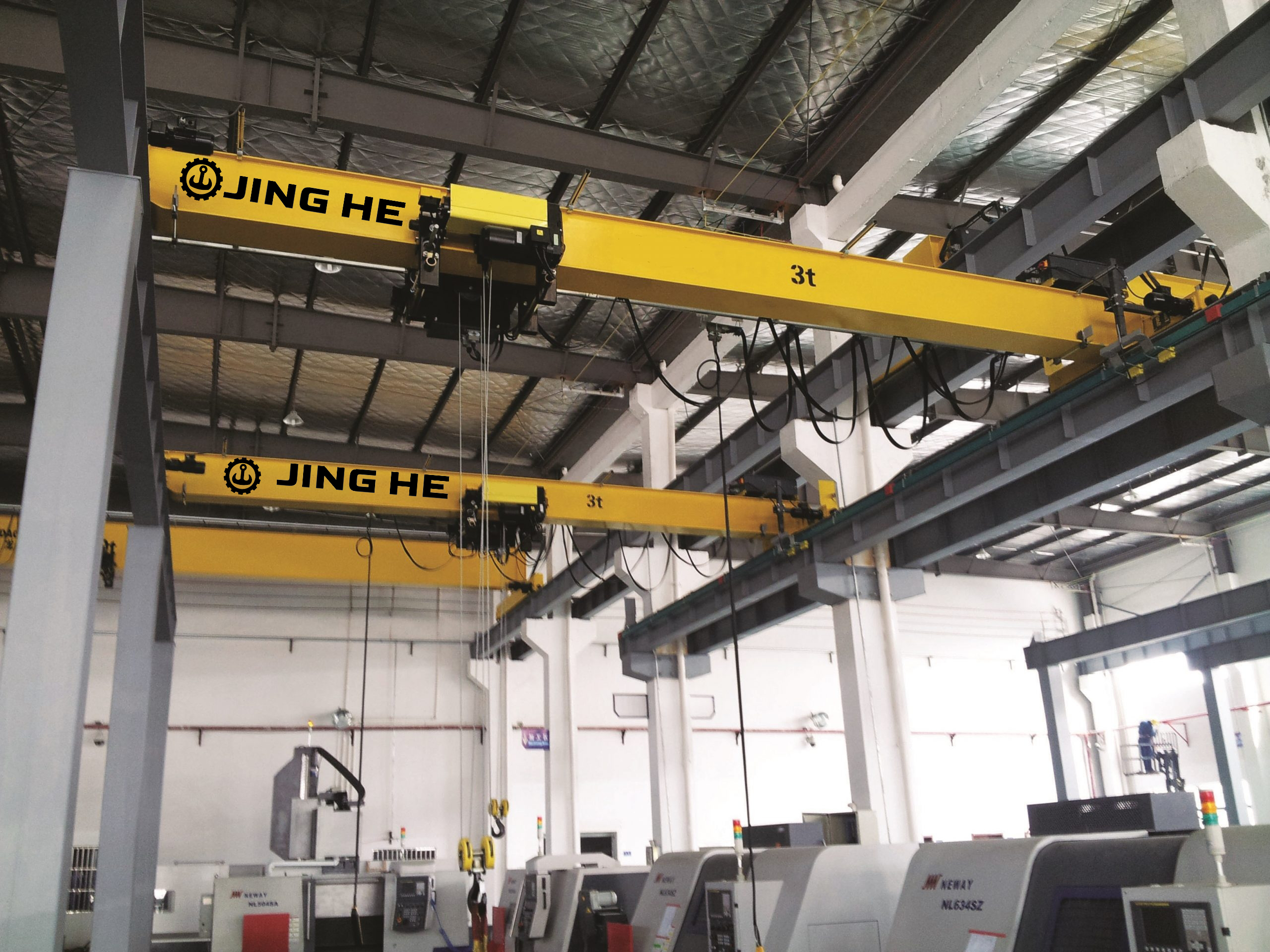

1 ton overhead crane

2. Adaptability design for special industrial environments

2.1 Strong corrosion environment (such as chemical industry, offshore platform)

Corrosion rate comparison:

Environment type                                             Annual corrosion of ordinary carbon steel                               Annual corrosion of Jinghe protection solution

Coastal salt spray environment                                                    0.5-1.2mm                                                                                ≤0.05mm

Acid and alkali workshop(pH1-3)                                                  2-4mm                                                                                     ≤0.1mm

Jinghe core technology:

✔️ Multi-layer composite coating: Epoxy zinc-rich primer + polyurethane topcoat, salt spray resistance > 3000 hours

✔️ Key components are stainless steel: 316L stainless steel is used for wire ropes, bolts, etc.

2.2 Space-constrained scenarios (such as underground mines and old factories)

Jinghe bridge crane space optimization solution:

▸ Low headroom design: main beam height is compressed to 800mm (traditional structure ≥1200mm)

▸ Flexible track system: supports L-type/Z-type non-standard track layout

▸ Case: Customized bridge crane with a span of 18m and a headroom of 4.2m for an underground energy storage power station, increasing space utilization by 70%

3. Safety and intelligent environmental adaptation upgrade

3.1 Safety protection in hazardous environments

Explosion-proof bridge crane:

✅ Complies with ATEX/IECEx standards, suitable for Zone 1/21 explosive environments

✅ Intrinsically safe electrical components + copper alloy explosion-proof gears, eliminating spark risks

✅ Jinghe certification: has passed global mainstream explosion-proof certifications such as China PCEC and Russia CU-TR

3.2 Intelligent environmental perception system

Jinghe SmartEnv™ environmental monitoring module:

Real-time collection of 12 parameters such as temperature, humidity, and corrosive gas concentration

Automatically switch operating modes (such as high-temperature load reduction and low-temperature preheating)

Link with the ERP system to generate environmental adaptability reports

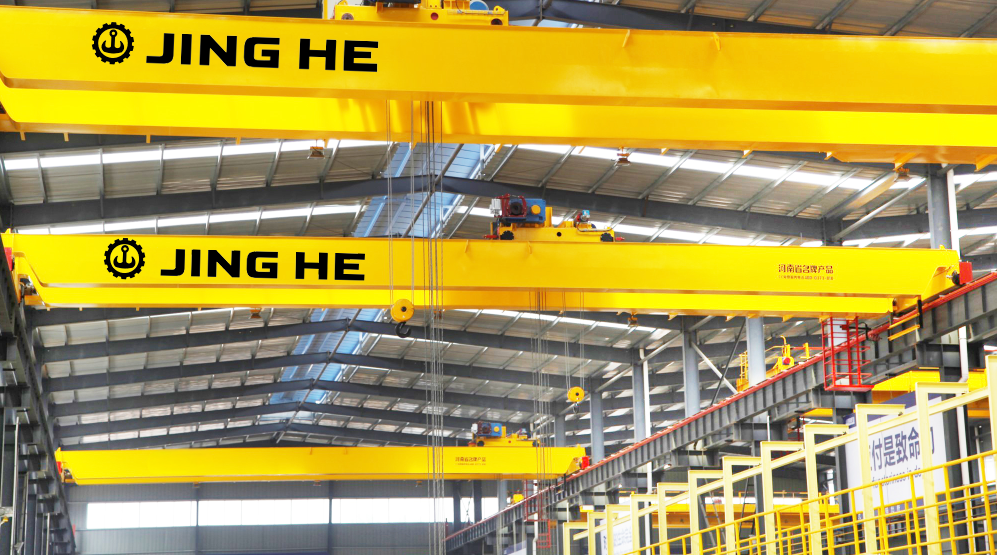

girder overhead crane

4. Jinghe Crane's technical differentiation advantages

Full life cycle customization service

5-step customization process:

On-site environmental mapping (3D laser scanning)

Working condition simulation test (digital twin platform)

Material and protection solution selection

Modular production (delivery cycle shortened by 40%)

Intelligent operation and maintenance system deployment

Choose Jinghe, choose a reliable handling force in all scenarios. Environmental adaptability is the ultimate test of the technical strength of bridge cranes. With more than 200 patented technologies and more than 500 successful cases worldwide, Jinghe Crane provides precise solutions for various extreme working conditions.
