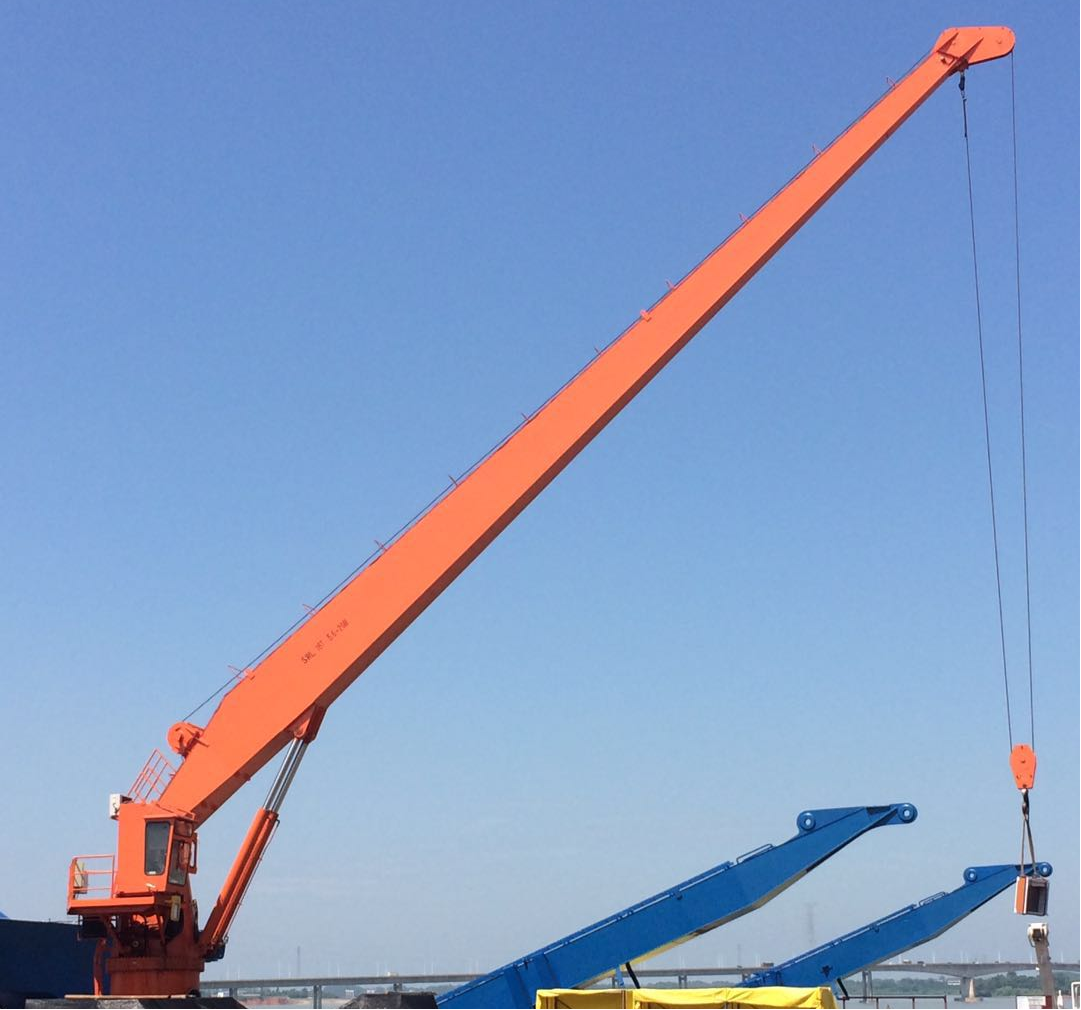

Stiff Boom Cranes

Stiff boom cranes

       Range from 150 up to 30000 kNm

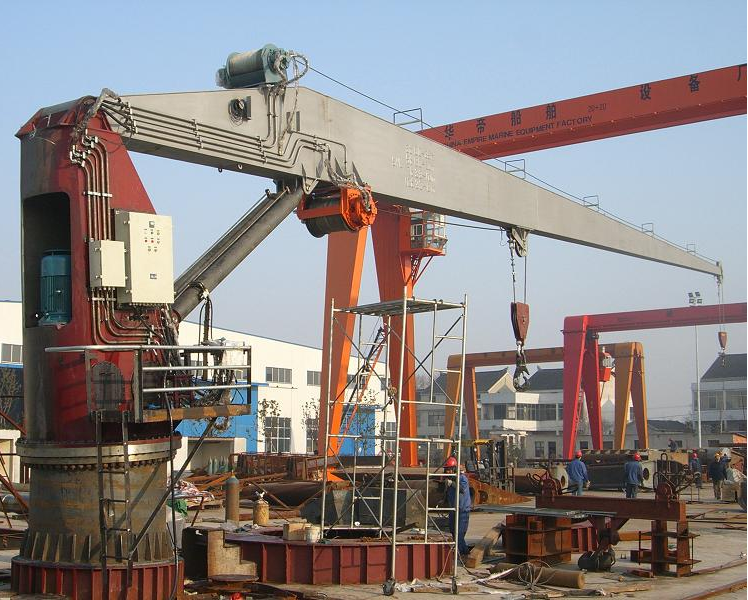

JINGHE stiff boom cranes are a great choice for safe, fast, and flexible material handling and unloading. Thanks to their simple and robust design based on a pedestal slewing mechanism with hydraulic cylinder luffing, these cranes are exceptionally low-maintenance. Combining minimal complexity and optimized weight with high-quality components and special features such as advanced corrosion treatment, stiff boom cranes are a solid and reliable asset for demanding working environments.

The cranes are available with lifting moments ranging from 141 to 30,000 kNm and can be customized to meet specific customer requirements. JINGHE stiff boom cranes can be delivered with a

wide range of certifications and numerous optional features. They are typically used in docks, on fixed installations, and in harbors.

Applications

• MARINE

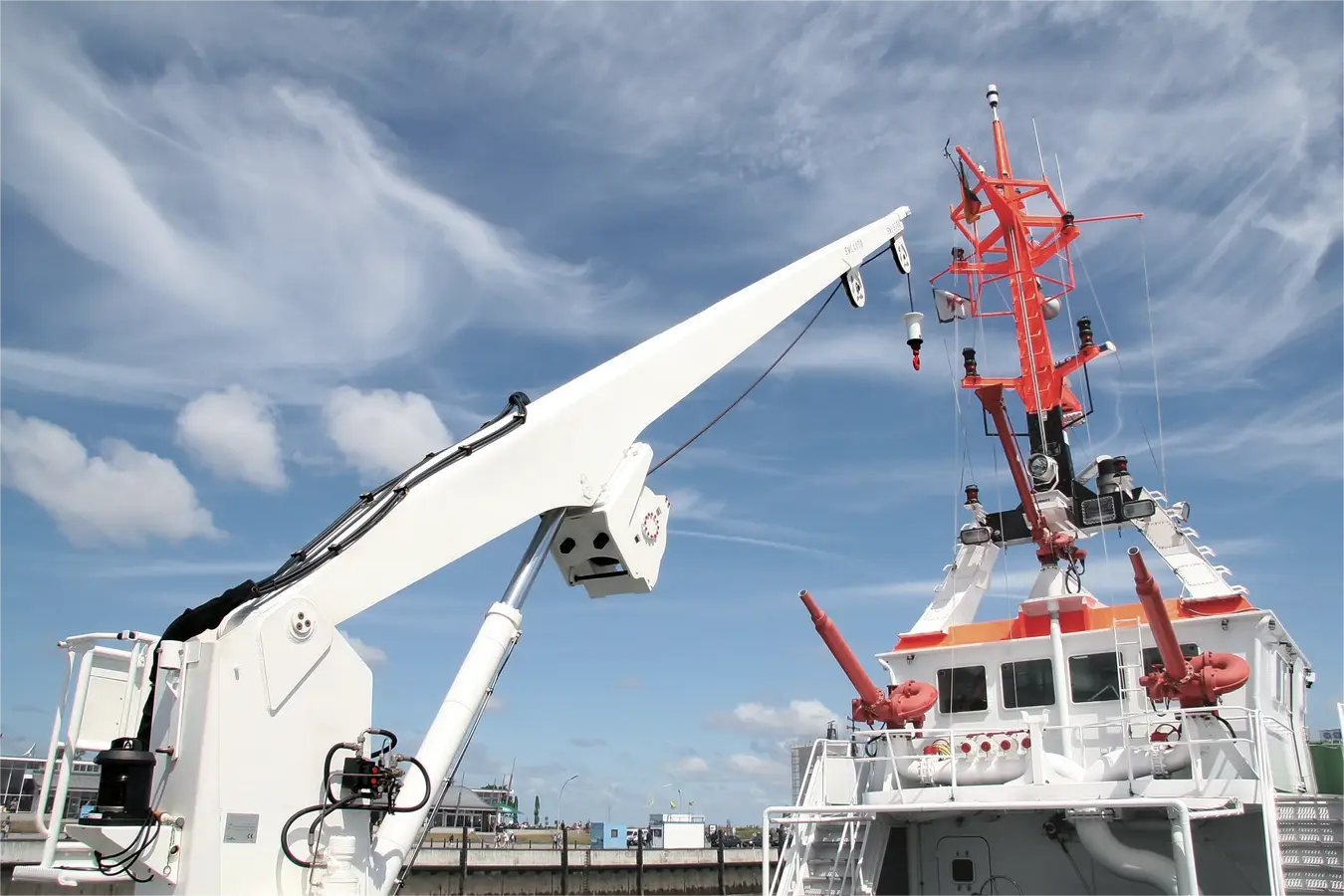

JINGHE stiff boom cranes for marine applications stand out due to their exceptional weight-to-power ratio. The slender design, combined with additional features and options, makes these cranes highly attractive for operators on service vessels involved in lifting and handling cargo and containers. Stiff boom cranes are commonly found on service vessels in docks and harbors.

1. Service cranes

2. Hose handling cranes

3. Container and cargo handling cranes

• OFFSHORE

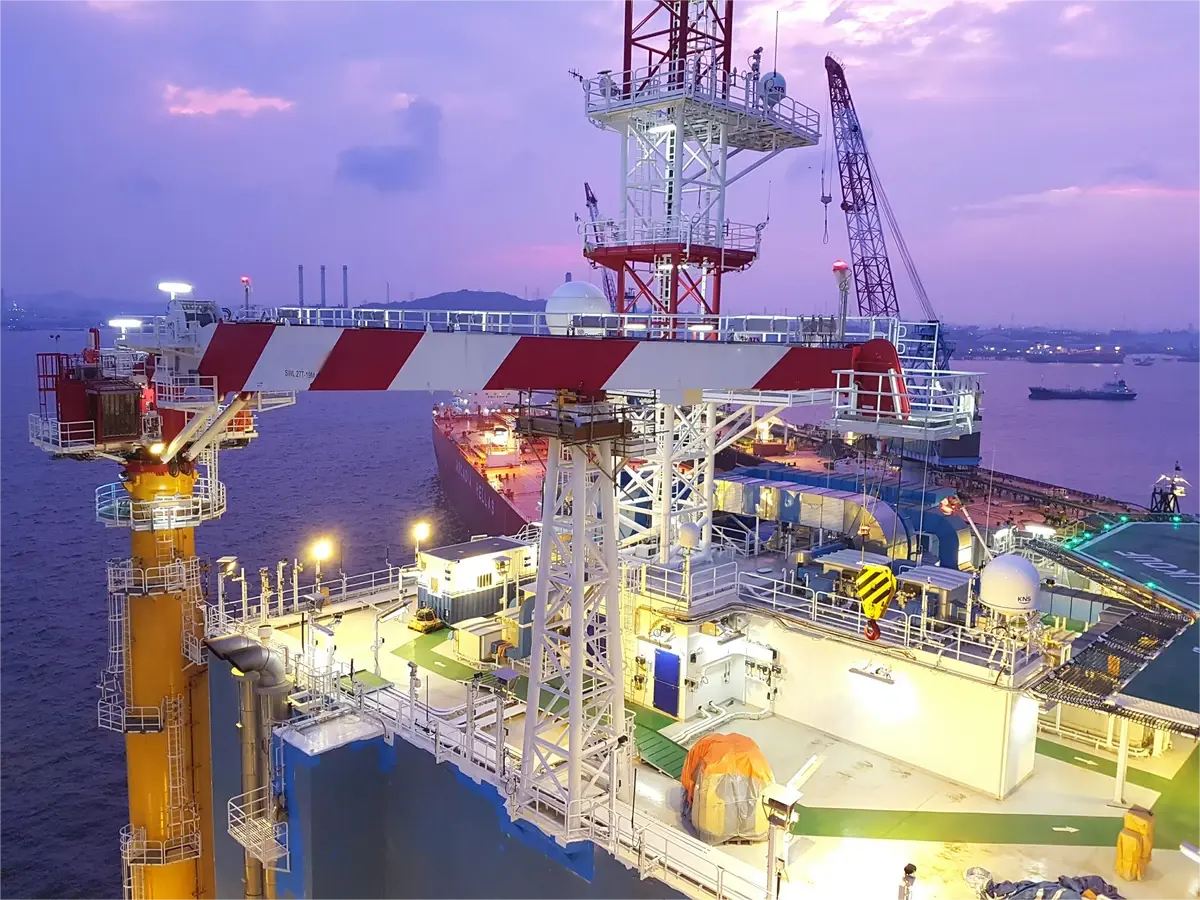

Stiff boom cranes for offshore applications are available with lifting moments up to 30,000 kNm and can be supplied according to customer requirements. JINGHE MARINE stiff boom cranes can be delivered with a broad range of certifications and numerous optional features. They are typically used as:

1. Shipboard cranes

2. Ship-to-Ship cranes

3. Hose handling cranes

4. Provision cranes

• WIND

Stiff boom cranes for the wind industry ensure safe and fast unloading of supply vessels and flexible material handling on transition pieces (TPs). Primarily used on platforms or substations, the cranes are customized to accommodate any sea state (characterized by significant wave height - SWH). Optional features enhancing functionality and safe operation make JINGHE stiff boom cranes the optimal choice for material handling, servicing, and handling of various equipment offshore. Stiff boom cranes for the wind industry are designed to meet specific customer requirements.

1. Platform cranes

2. Substation cranes

Features

• Lifting capacity up to 100 tonnes

• Jib radius up to 50 meters

• Corrosion protection with long-life surface treatment

• Operation from crane-mounted control platform

• Integrated electro-hydraulic drive / HPU (Hydraulic Power Unit)

• Continuous slewing

• Operation in low/high temperature environments

• Anti-collision system(s)

OPTIONS

• Remote control / operator's cabin

• Overload protection systems: MOPS (Mechanical Overload Protection System) & AOPS (Automatic Overload Protection System)

• Constant tensioning system

• Lifting of personnel – man-riding

• External hydraulic power packs

• Thermal spray metallizing

• Custom painting systems

• Crane certification according to selected rules and regulations

• Active Heave Compensation (AHC)

• ATEX Zone 1 and 2 execution

• Tugger winches

rANGE
