Steel Giants with Distinct Missions: Gantry Crane vs. Shipyard Crane
On the vast stage of heavy industry, gantry crane and shipyard crane equipment stand as symbols of strength, tasked with moving immense loads composed of critical heavy component structures. Among them, the versatile gantry crane and the specialized shipyard crane represent two common and crucial types of lifting machinery. While both the standard gantry crane and dedicated shipyard crane belong to the same family of lifting equipment and are essential for transporting massive heavy component assemblies, they differ significantly in their design purpose, application scenarios, and functional characteristics when handling these substantial heavy component loads.
Gantry Crane: The Versatile Workhorse of Logistics Hubs

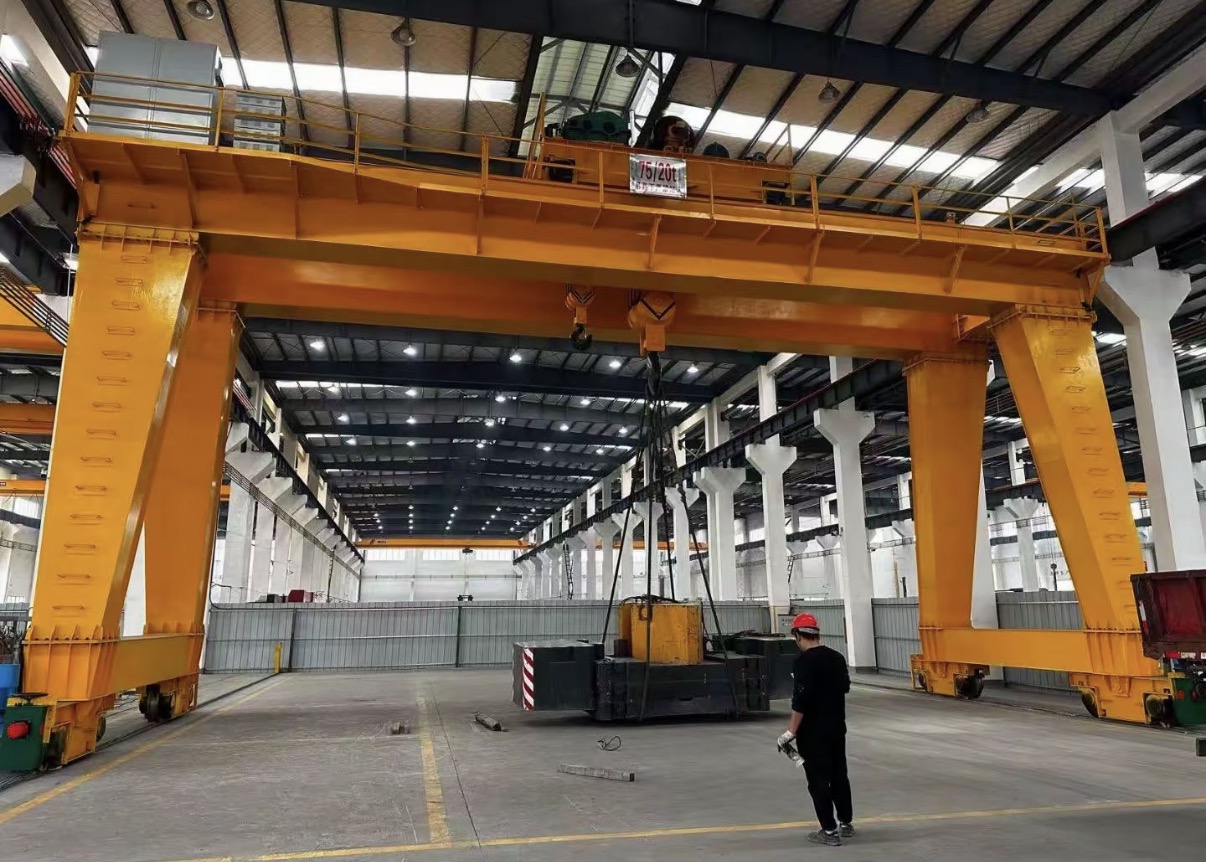

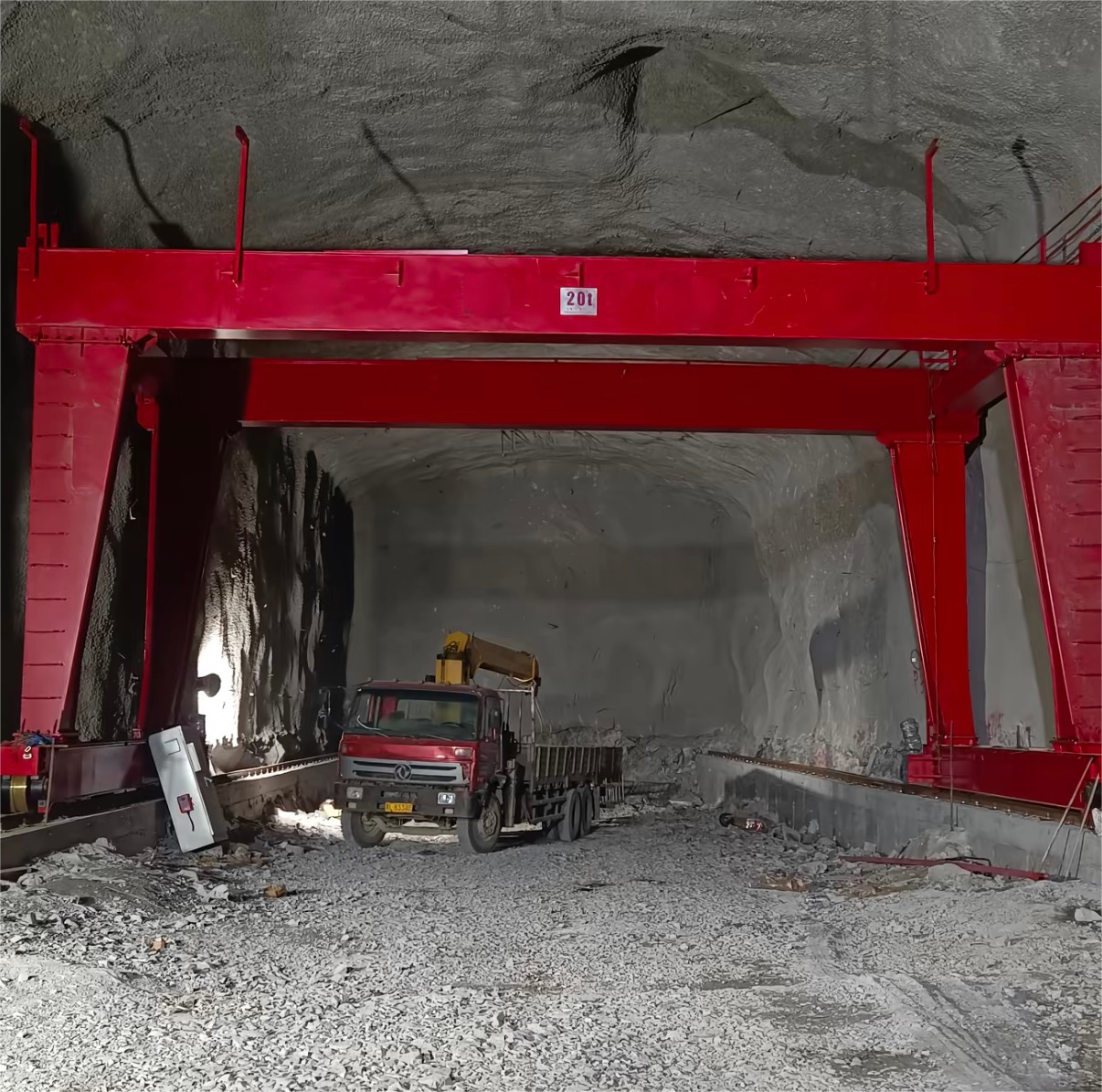

The gantry crane, named for its structural resemblance to the traditional Chinese "Dragon Gate," is typically characterized by two sturdy legs supporting a bridge that moves laterally along ground rails. A hoist trolley travels longitudinally along this bridge, enabling precise lifting within a rectangular area. This type of crane is renowned for its exceptional versatility and powerful lifting capacity, commonly found in railway freight yards, port terminals, large logistics parks, and heavy equipment manufacturing workshops. Its core mission is the efficient and rapid loading, unloading, and transfer of various heavy components, such as standard containers, large steel sections, and engineering machinery. The working environment of a gantry crane usually demands a considerable span and lifting height to cover extensive areas, with its design focusing more on the efficiency and flexibility of general material handling.
Shipyard Crane: The Customized Specialist for Hull Construction

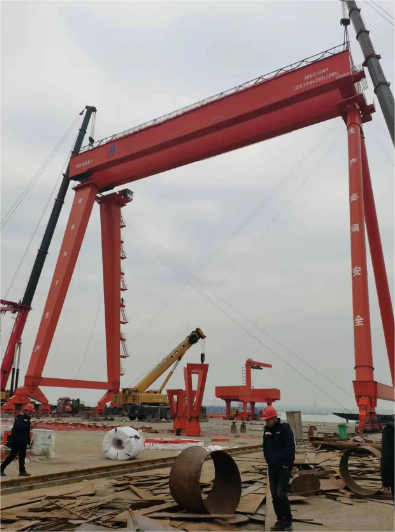

In contrast, the shipyard crane is specialized equipment tailor-made for the specific industrial process of shipbuilding, differing significantly from a standard gantry crane in its capabilities. The construction of vessels involves the lifting and precise positioning of numerous oversized, ultra-heavy, and irregularly shaped sections and modules. These are not ordinary loads but massive heavy component structures that impose unique requirements on the equipment, far beyond what a typical gantry crane would encounter. Shipyard cranes (often referring to large portal slewing cranes or specific types of gantry cranes) typically possess greater lifting heights, larger working radii, and more precise micro-movement capabilities than a conventional gantry crane. They stand tall on either side of dry docks or shipways, with their core task being to execute critical processes like lifting, turning, and joining large hull heavy component sections—directly participating in the "assembly" of the ship. Their handling objects are the most challenging heavy component assemblies; therefore, demands on the shipyard crane for stability, control precision, and the ability to handle complex lifting procedures are extremely high, surpassing the requirements for a standard gantry crane used for general material handling. They are the backbone of the shipbuilding industry, where every lift involves a critical heavy component that defines the vessel's structure.
Core Differences and Synergistic Coexistence
In essence, the core differences between the two are:
Application Field: The gantry crane is a versatile "all-rounder" for general logistics and multi-industry applications; the shipyard crane is a "specialist" focused exclusively on the field of shipbuilding.
Functional Focus: The gantry crane emphasizes efficient, batch material transfer within a fixed area; the shipyard crane specializes in the precise assembly and installation of large structural components, with stricter requirements for positioning accuracy and adaptability to complex working conditions.
Technical Characteristics: Although both handle heavy components, the shipyard crane often features more targeted designs in terms of lifting capacity, working radius, and the refinement of its control system to manage unique heavy components.
In practical applications, a modern shipyard demonstrates this equipment synergy perfectly. The facility typically utilizes gantry crane systems for routine material transport throughout storage areas, while also operating specialized shipyard crane equipment for major assembly work. The standard gantry crane handles the movement of preparatory materials and smaller heavy component units to various workstations, whereas the massive shipyard crane structures are dedicated to hull block assembly in the docking areas. This division of labor between the versatile gantry crane and the specialized shipyard crane creates an efficient workflow. Furthermore, the largest shipyard crane units are positioned along the drydock's edge, capable of lifting entire superstructure modules that smaller gantry crane equipment cannot manage. Each type of shipyard crane is tasked with specific phases of the construction process, working in coordination with the supporting gantry crane operations. They perform their respective duties, operating in synergy to ensure the smooth progress of massive maritime projects, with the precision of the shipyard crane being particularly crucial for final assembly stages, while the gantry crane maintains essential logistics support across the facility.
Conclusion
In conclusion, both the gantry crane and the shipyard crane are indispensable. The gantry crane forms the backbone of global logistics chains, moving a standard heavy component with brute efficiency. The shipyard crane, however, is an instrument of creation, carefully placing each unique heavy component to build the leviathans that traverse our oceans. Each is a master of its domain, perfectly adapted to the specific challenges of moving a heavy component in its respective world.
