Henan Jinghe's leading product: electric hoist

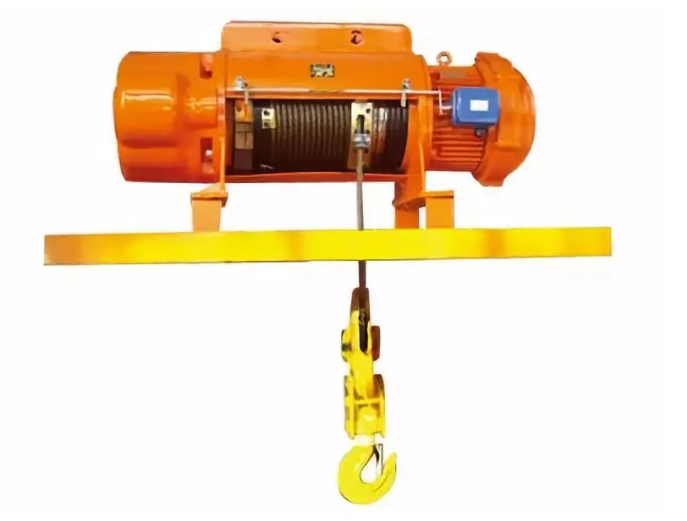

Metallurgical electric hoist
This type of electric hoist is an improved product with some special designs based on the original CD and MD models. It has high temperature resistant heat insulation protection, double limit protection for lifting, and working level M6. When the rated lifting capacity is greater than 5t, the electric hoist is equipped with a working brake and a safety brake at the low speed level. When the working brake fails or the transmission parts are broken, it can reliably support the rated load. When the rated lifting capacity is less than or equal to 5t, the electric hoist is designed for 1.5 times the rated lifting capacity.

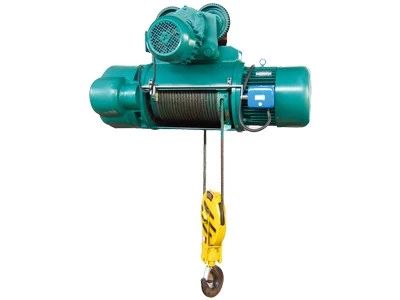

New Electric Hoist
The European electric hoist is a new type of electric hoist with lightweight, modular, maintenance-free and high-tech content that our company has completed based on the introduction and digestion of foreign advanced technology, using imported configurations, new materials and new processes. It uses lifting motors and reducers imported from Germany. The integrated compact design of lifting motors, reducers, drums and lifting limit switches saves users' space. The modular design effectively reduces maintenance time and costs while enhancing the reliability of the mechanism. It has faster and more lifting speeds and a variety of pulley ratios to choose from.

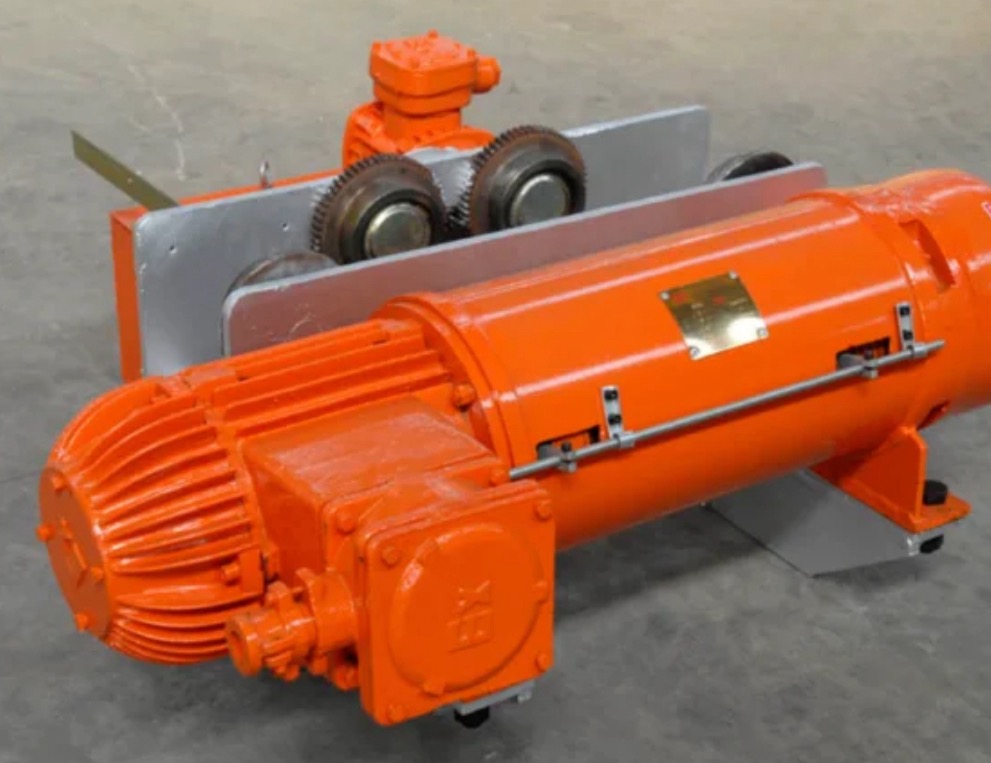

Explosion-proof electric hoist
Explosion-proof electric hoist is based on ordinary wire rope electric hoist, and the motor, electrical appliances and some parts take explosion-proof measures. According to different environments, it is divided into gas explosion-proof and dust explosion-proof.

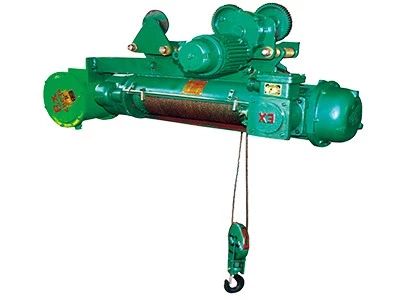

Wire rope electric hoist
The lifting motor, drum device and reducer are arranged in series. The appearance is round or square. It has vertical lifting and running functions. The lifting speed is divided into single speed or double speed. The double speed type is based on the single speed type, with an additional slow drive device consisting of a slow motor and a reducer. Its speed ratio with the fast speed is 10:1. When the fast motor is working, the slow drive device does not move, and the electric hoist rises and falls quickly. When the slow motor is working, the conical rotor of the main lifting motor is driven to rotate through the slow drive device, and the electric hoist rises and falls slowly.
